The Shimano Tourney TX mechanical disk brake offers reliable performance with smooth, light action and wider pad clearance for reduced rubbing noise.
The Shimano Tourney TX mechanical disk brake offers reliable performance with smooth, light action and wider pad clearance for reduced rubbing noise.
Shimano

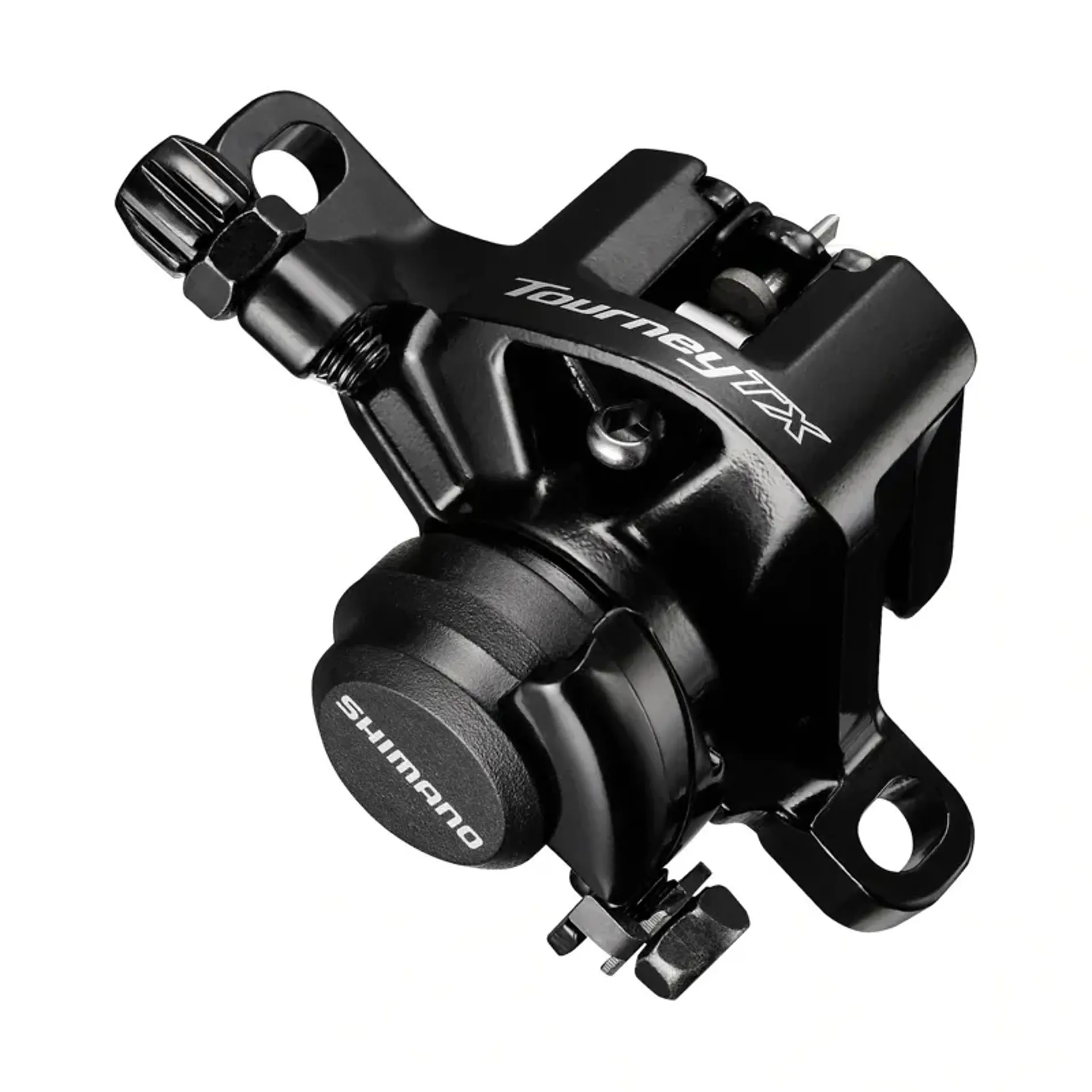

Shimano Tourney BR-TX805 Mechanical Disk Brake Caliper in Black

$39.99
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Shimano Tourney BR-TX805 Mechanical Disk Brake Caliper in Black

Season:2016

Brand:Shimano

Code:BR8761

The Shimano Tourney TX mechanical disk brake offers reliable brake performance with smooth, light action.

This cable-actuated mechanical disk brake is designed for use with linear-pull MTB levers. It features a single 74mm caliper and is compatible with B01S resin pads. Please note that the rotor and frame or fork mount adaptor are not included.

Features:

  • Wider pad clearance (+20% vs. BR-M416-A) for less opportunity of pad rubbing noise.
  • Quick assembly.
  • Clean cable routing in combination with both chain stay and seat stay mount.
  • Affordable mechanical disk brake with CENTER LOCK system.
  • Designed for resin pad only.
  • Compatible with 160mm/180mm rotor sizes.
Technical Information
  • Series
    TOURNEY TX
  • Brake type
    Mechanical disk brake
  • Pad
    B03S-RX Resin (w/o fin)
  • Recommended brake lever
    V-BRAKE BL (1.5-2.5 finger)
  • Recommended disk brake rotor
    SM-RT10, SM-RT26
  • Mount type
    Post type
  • Piston
    1
  • Caliper fixing screw tool size
    5 mm
  • Anti loosen method
    Snap ring
  • Pad mount
    Split pin
  • Pad clearance
    +20% vs. BR-M416-A
  • Pad compatibility
    Resin pad only
  • Rotor size
    160mm/180mm
